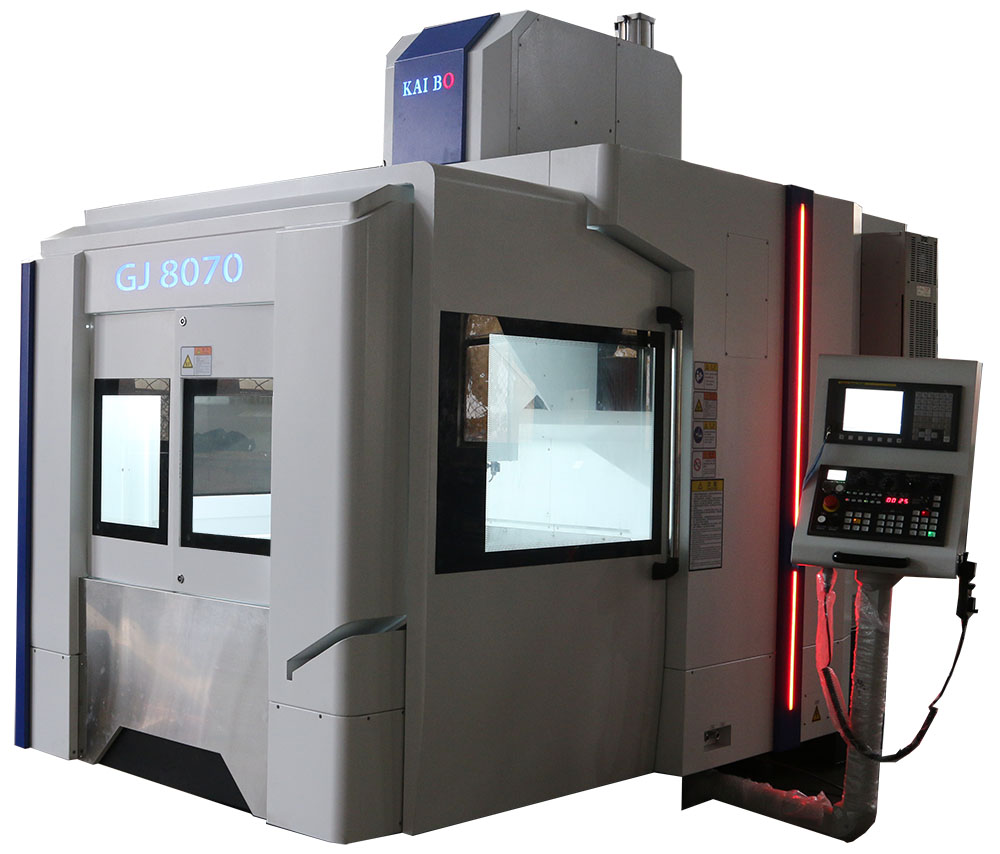

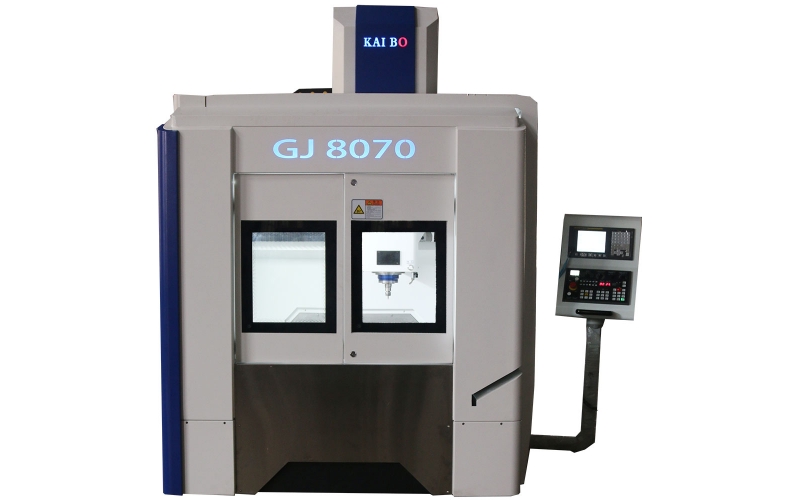

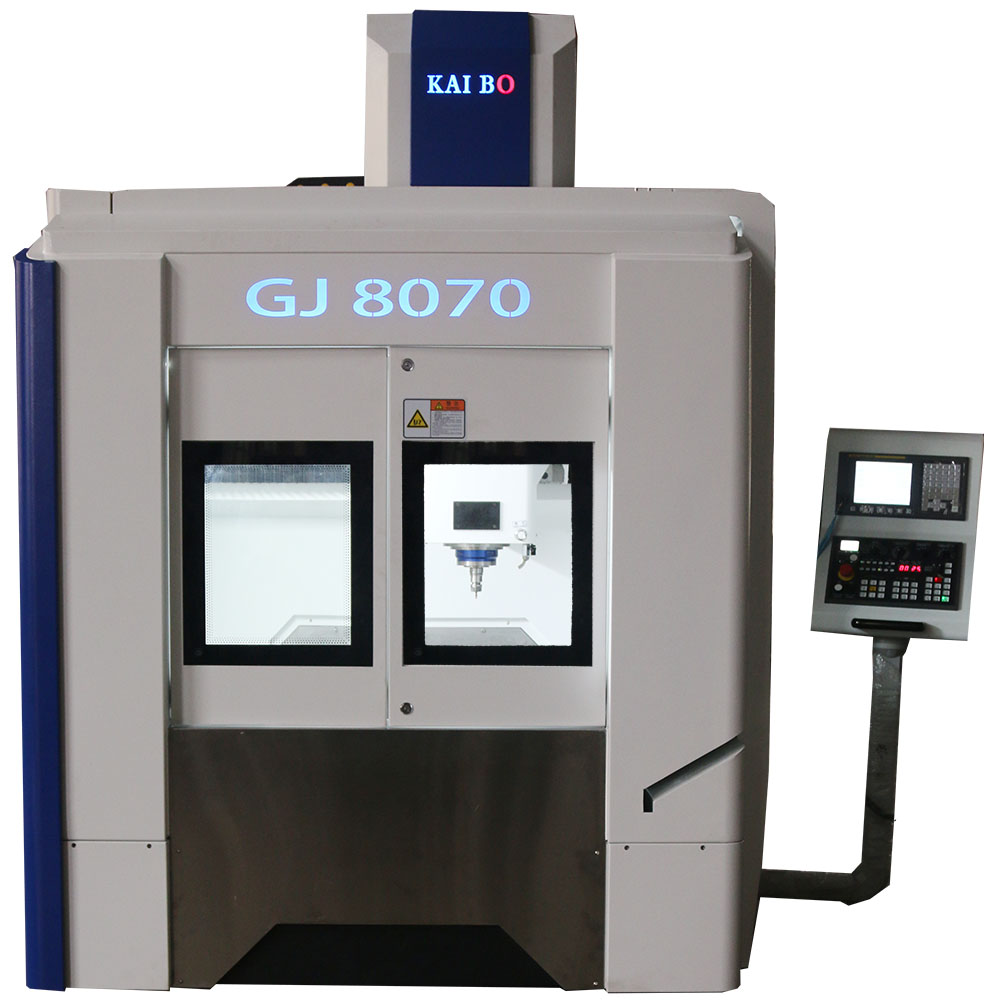

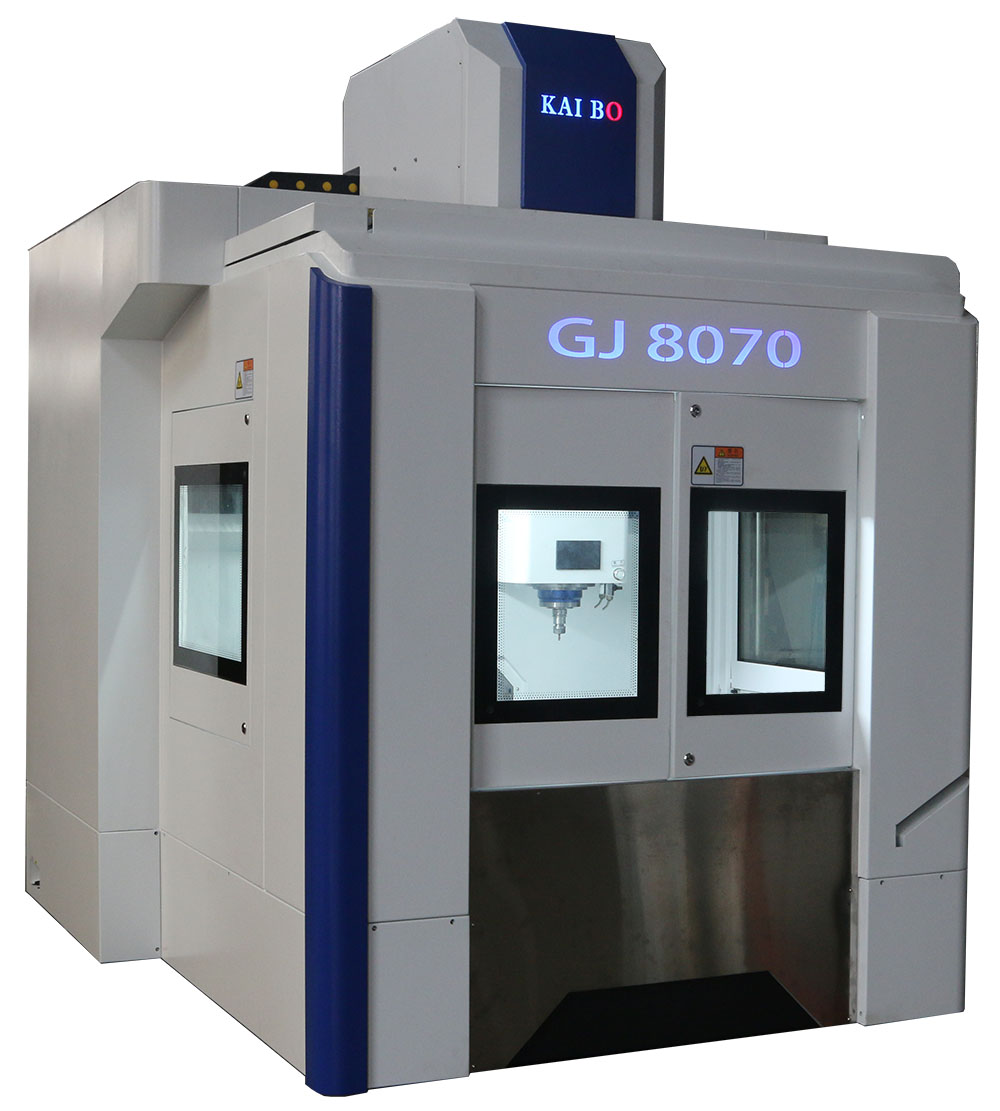

GJ-8070
Parameter/ModelGJ-8070AccuracyPositioning accuracy0.01mmRepeat positioning accuracy0.008mmWorktableWorktable size800*700mm T-slot size5T-18-180mmMax. load800KgTravelX/Y/Z axis travel800*700*400mmGantr
| Parameter/Model | GJ-8070 | |
| Accuracy | Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.008mm | |
| Worktable | Worktable size | 800*700mm |
| T-slot size | 5T-18-180mm | |
| Max. load | 800Kg | |
| Travel | X/Y/Z axis travel | 800*700*400mm |
| Gantry width | 900mm | |
| Beam to worktable | 550mm | |
| Spindle nose to worktable | 155-555mm | |
| Feed | Max. feeding speed G00 | 30m/min |
| Max. working speed G01 | 10m/min | |
| X/Y/Z axis motor power | 1300w/1300w/1300w | |
| Spindle | Spindle motor power | 7.5kw |
| Spindle Max. speed | 36000rpm | |
| Tool holder | HSK E40 | |
| Tool Magazine（Opt.) | ATC type | Arm type |
| ATC capacity | 24pcs | |
| Common | Power supply and total capacity | 3P/380V/50Hz/15KVA |
| Machine weight | 4600Kg | |
| Dimension | 2580*2030*2460mm | |
| Main parts | Controller | Fanuc/Japan 0i-MF |
| AC servo motor(Driver) | Fanuc/Japan | |
| Spindle inverter | Fanuc/Japan | |
| Linear guide way | 35/45/35 Hiwin,PMI/Taiwan | |
| Ball screw | 3210 Hiwin,PMI/Taiwan | |
| Electronic hand-wheel | EHDW-BA5S-1 Future/Taiwan | |
| Lubrication system | YET-A2P2 ISHAN/Taiwan | |
| Oil Coolant Chiller | Parsonthor/China | |
| Air conditioner | Parsonthor/China 6AP | |
| Chip conveyor | Inside screw-type | |
