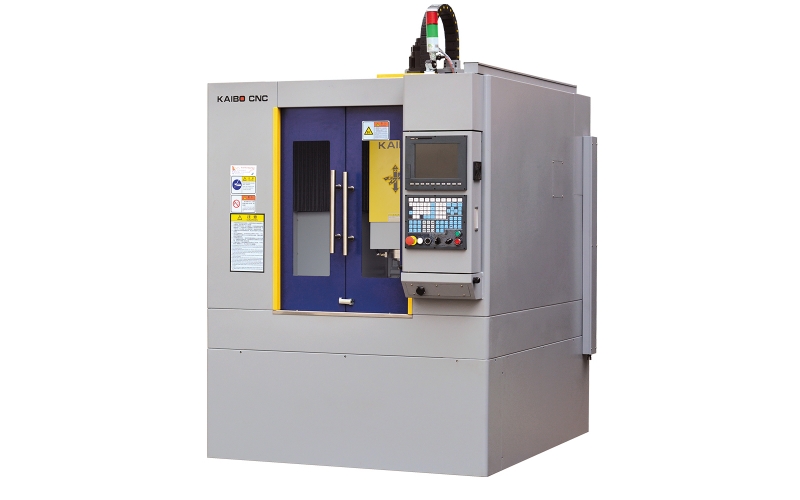

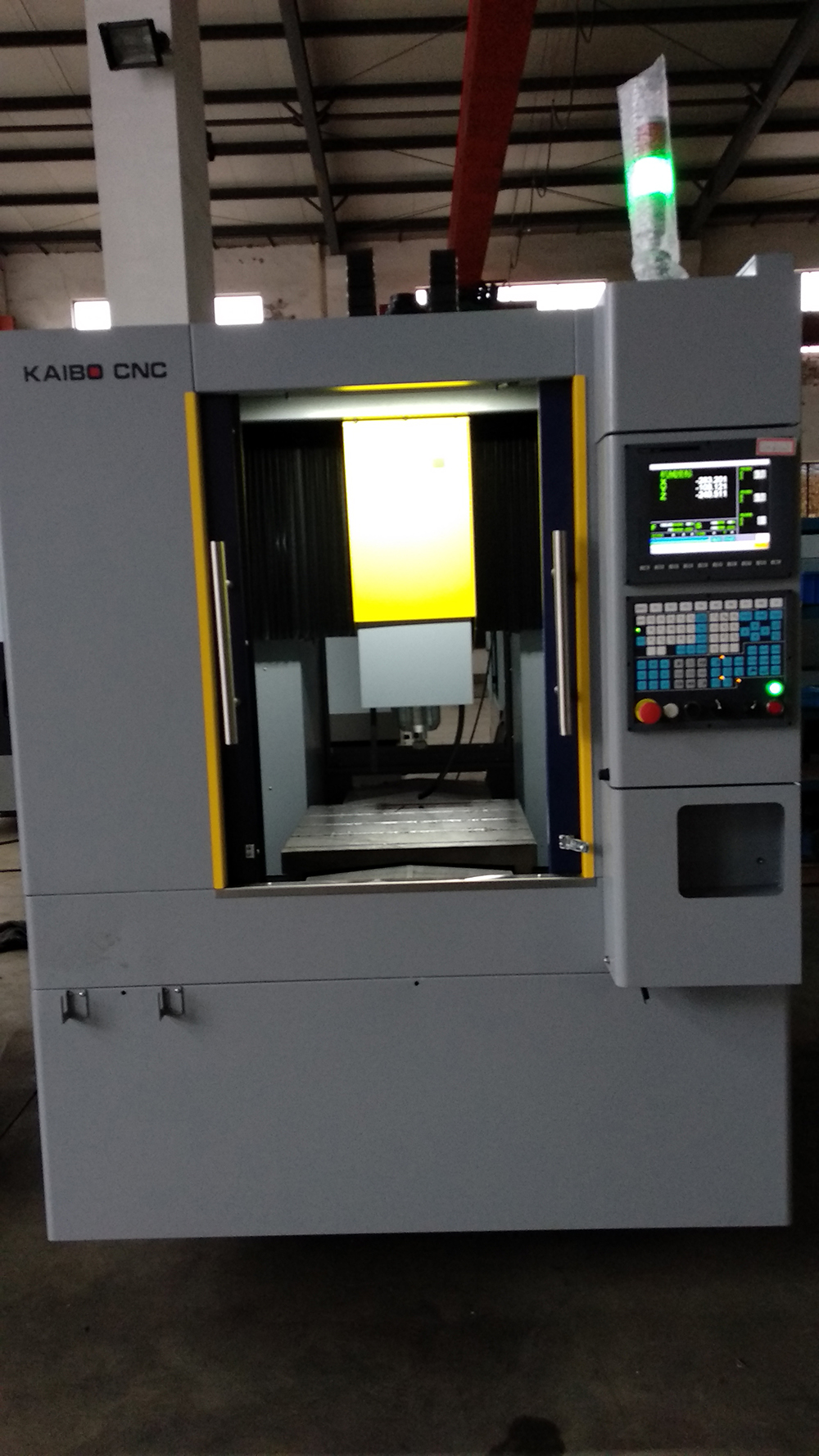

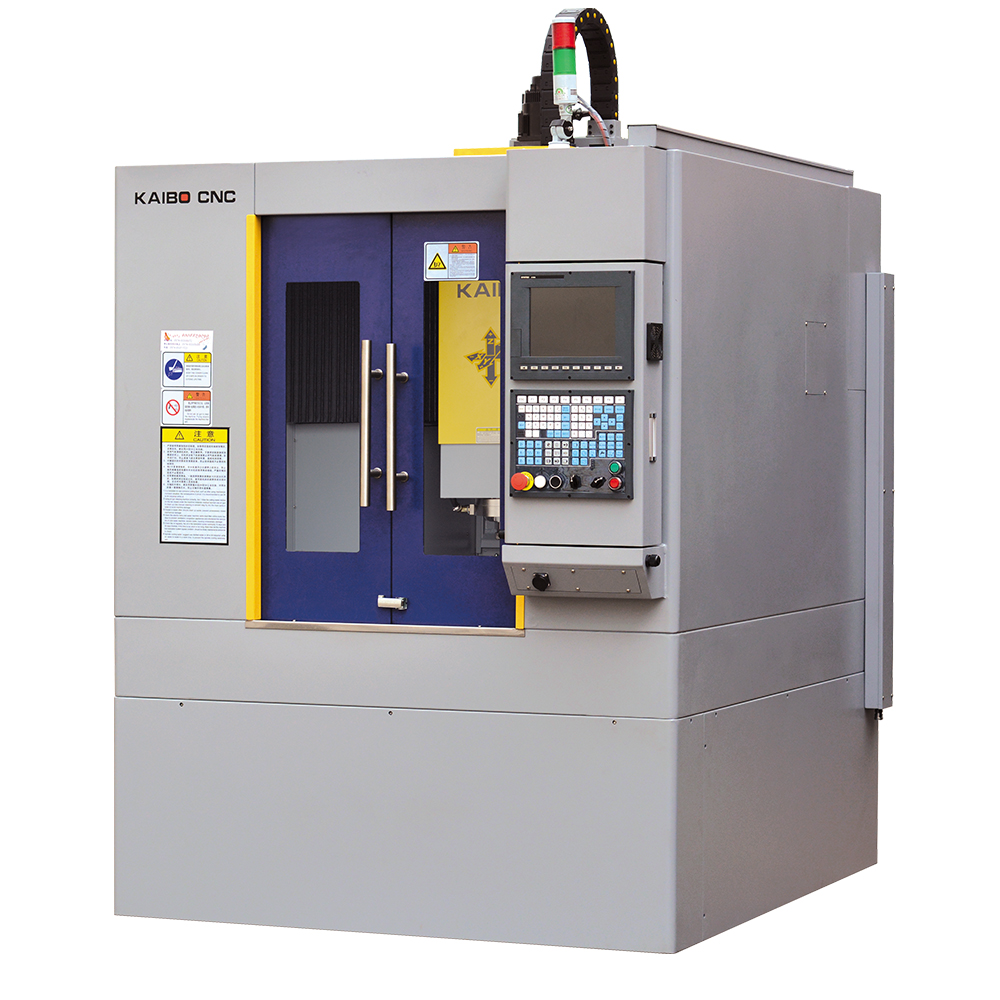

DC-6060 Graphite machine
Parameter/ModelDC-6060AccuracyPositioning accuracy0.01/300mmRepeat positioning accuracy0.005mmWorktableWorktable size605*605mm T-slot size5T-12-130mmMax. load300KgTravelX/Y/Z axis travel600/600/360mmG
| Parameter/Model | DC-6060 | |
| Accuracy | Positioning accuracy | 0.01/300mm |
| Repeat positioning accuracy | 0.005mm | |

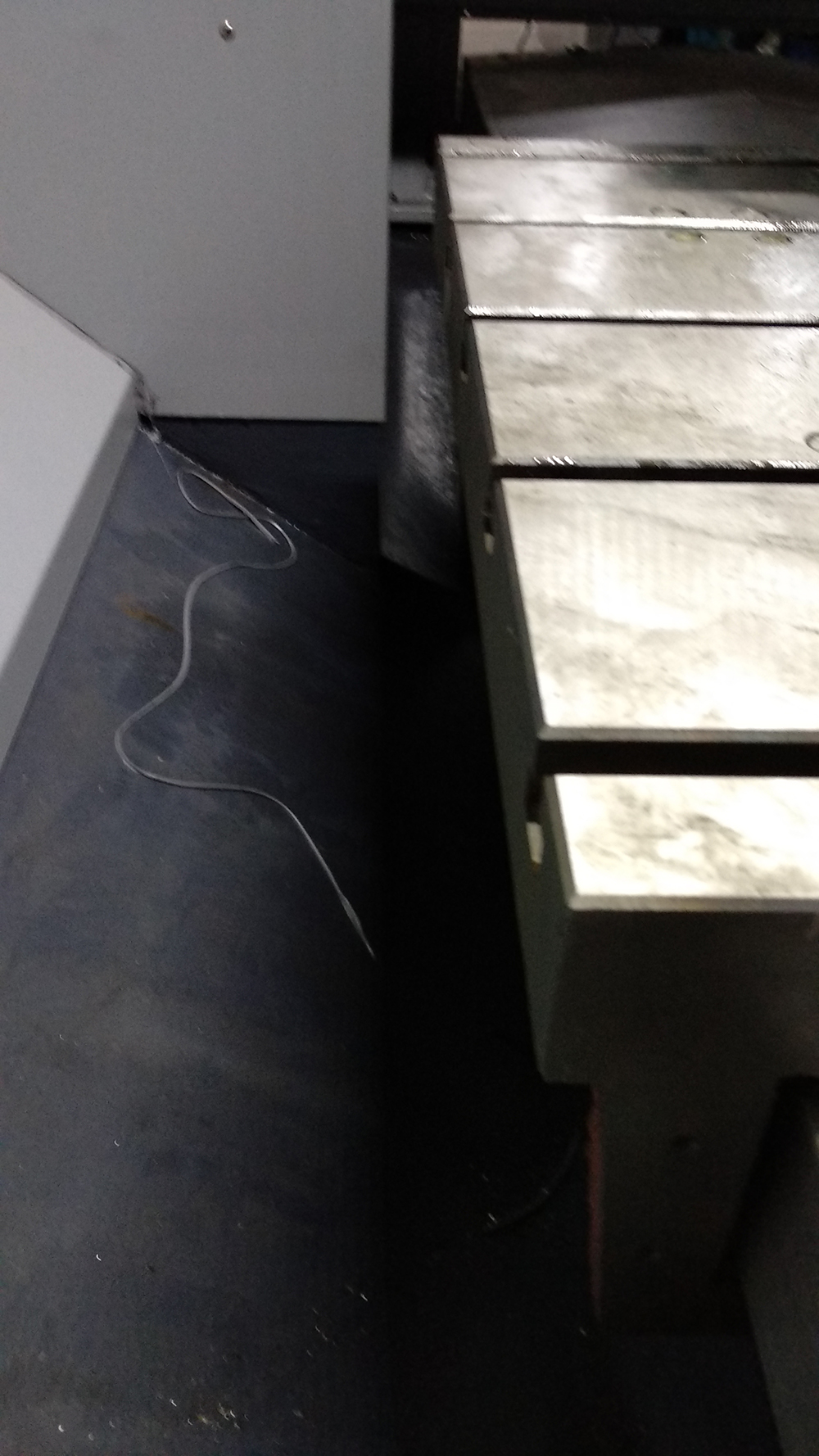

| Worktable | Worktable size | 605*605mm |
| T-slot size | 5T-12-130mm | |
| Max. load | 300Kg | |
| Travel | X/Y/Z axis travel | 600/600/360mm |
| Gantry width | 660mm | |
| Beam to worktable | 420mm | |
| Spindle nose to worktable | 70-430mm | |
| Feed | Max. feeding speed G00 | 12m/min |
| Max. working speed G01 | 8m/min | |
| X/Y/Z axis motor power | 850w/850w/850w | |

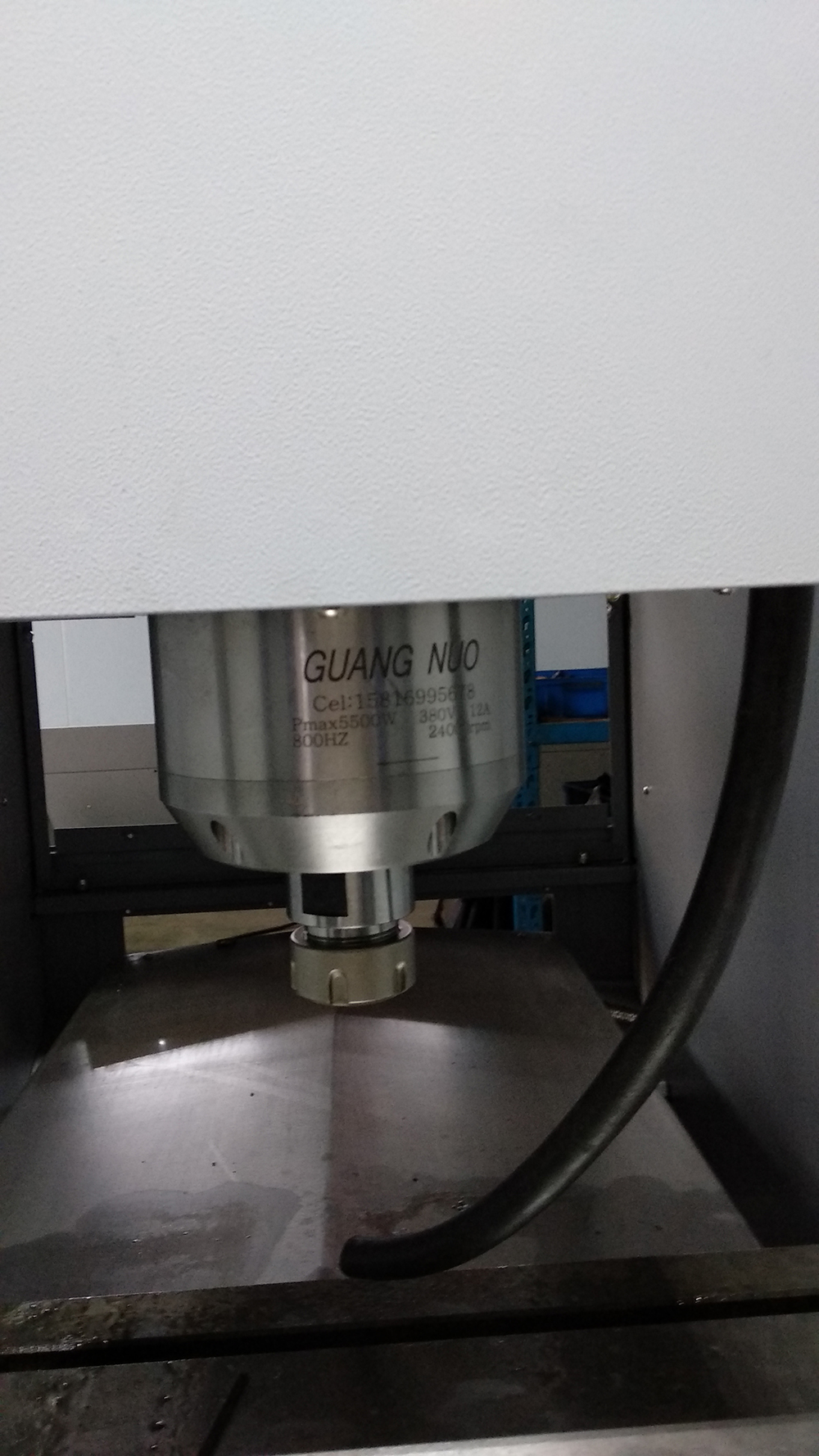

| Spindle | Spindle motor power | 5.5KW |
| Spindle Max. speed | 24000rpm | |
| Tool holder | BT30 | |
| Tool Magazine （Opt.) | ATC type | Disc. Type |
| ATC capacity | 10pcs | |
| Common | Power supply and total capacity | 3P/380V/50Hz/15KVA |
| Machine weight | 4200Kg | |
| Dimension | 2030*1830*2430mm | |
| Main parts | Controller | Syntec 21MA/Taiwan |
| AC servo motor(Driver) | Yaskawa/Japan | |
| Spindle inverter | Inovance/China | |
| Linear guide way | 30 Hiwin,PMI/Taiwan,Schneeberger/Switzerland | |
| Ball screw | 2810/2810/3210ATCHiwin,PMI/Taiwan，THK/Japan | |
| Electronic hand-wheel | EHDW-BA5S-1 Future/Taiwan | |
| Lubrication system | YET-A2P2 ISHAN/Taiwan | |
